AMD Ryzen 5 3400G Processor with Radeon RX Vega 11 Graphics

Features:

General Specifications:

Name : AMD Ryzen 5 3400G with Radeon RX Vega 11 Graphics

Family : Ryzen

Series : Ryzen 3000 Series

Form Factor : Desktops, Boxed Processor

Market Segment : Mainstream Desktop

AMD PRO Technologies : No

Regional Availability : Global , China , NA , EMEA , APJ , LATAM

Former Codename : Picasso

Processor Architecture : Zen+

# of CPU Cores : 4

Multithreading (SMT) : Yes

# of Threads : 8

Max. Boost Clock : Up to 4.2 GHz

Base Clock : 3.7 GHz

L1 Cache : 384 KB

L2 Cache : 2 MB

L3 Cache : 4 MB

Default TDP : 65W

AMD Configurable TDP (cTDP) : 45-65W

Processor Technology for CPU Cores : 12nm FinFET

CPU Compute Die (CCD) Size : 210mm²

Package Die Count : 1

Total Transistor Count : 4.94 Billion

Unlocked for Overclocking : Yes

CPU Socket : AM4

Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320

CPU Boost Technology : Precision Boost 2

Instruction Set: x86-64

Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

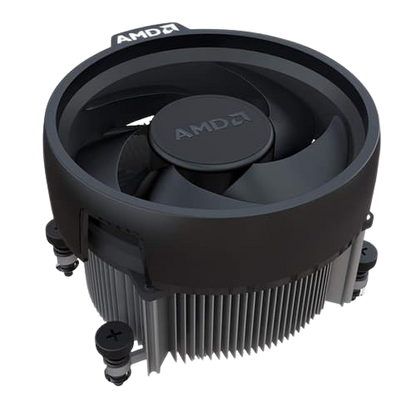

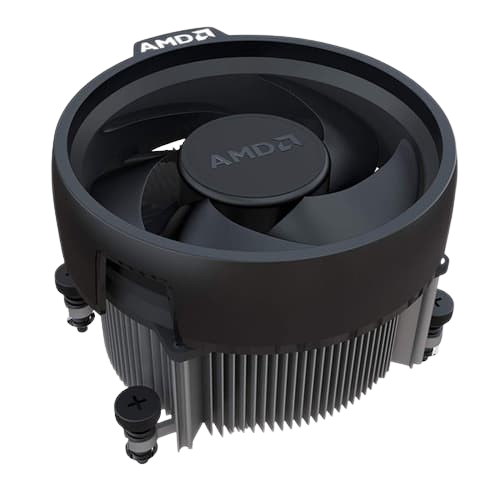

Thermal Solution (PIB) : AMD Wraith Spire

Thermal Solution (MPK) : AMD Wraith Spire

Max. Operating Temperature (Tjmax) : 95°C

*OS Support:
Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity:

Native USB 3.2 Gen 2 (10Gbps) : 0

Native USB 3.2 Gen 1 (5Gbps) : 4

Native USB 2.0 (480Mbps) : 0

Native SATA Ports : 0

PCI Express® Version : PCIe® 3.0

Native PCIe® Lanes (Total/Usable) : 20 , 16

Additional Usable PCIe Lanes from Motherboard : X470
2x Gen 3, 8x Gen 2

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR4

Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :

2x1R
DDR4-2933
2x2R
DDR4-2667
4x1R
DDR4-2133
4x2R
DDR4-1866
ECC Support : Yes (Requires mobo support)

Graphics Capabilities:

Graphics Model : Radeon RX Vega 11 Graphics

Graphics Core Count : 11

Total Graphics Shaders : 704

Graphics Frequency : 1400 MHz

GPU Max. Memory : 2 GB

WDDM Version : 2.7

DirectX Version : 12

OpenGL : 4.6

OpenCL :2.2

DisplayPort Version : 1.4a

DisplayPort Extensions : Adaptive-Sync , HBR3 , HDR Metadata

DisplayPort Max Refresh Rates (SDR):
3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz

DisplayPort Max Refresh Rates (HDR):
3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz

HDMI Version : 2.0

HDCP Version Supported : 2.2

USB Type-C DisplayPort Alternate Mode : Yes

Multi-Monitor Support : Yes

Max Displays : 3

AMD FreeSync™ : Yes

AMD Eyefinity Single Large Surface (SLS): No

Wireless Display : Miracast

Max Video Encode Bandwidth (SDR) :

1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265

Max Video Decode Bandwidth:

1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

Warranty:3 Years

Note:Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
