| Platform |
INTEL |
| Socket |
LGA1700 |
| Cpu Type |
14th Gen,13th Gen,12th Gen,Pentium,Celeron |
| Chipset |
H610 |
| Memory Speed |
up to 5600 |
| Max Memory Support |
96 GB |
| Supported Memory Type |
DDR5 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Supports non-ECC, un-buffered memory
|
| Graphics Port |
1x HDMI,1x DisplayPort,1x VGA |
| Expansion Slots |
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|

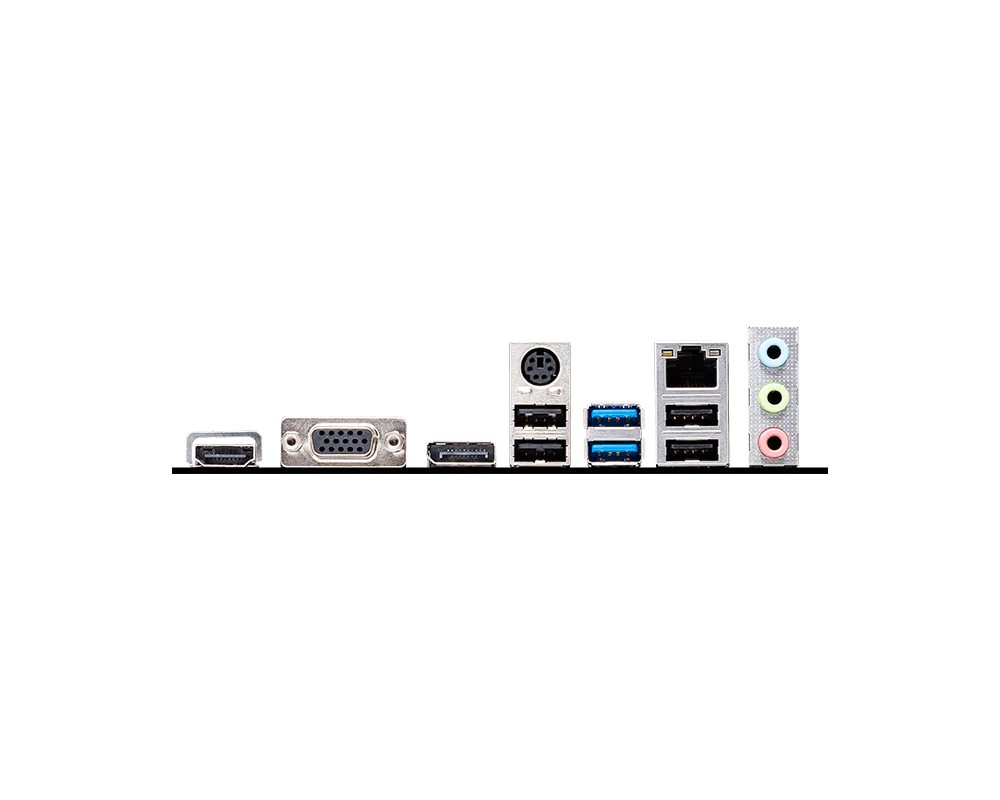

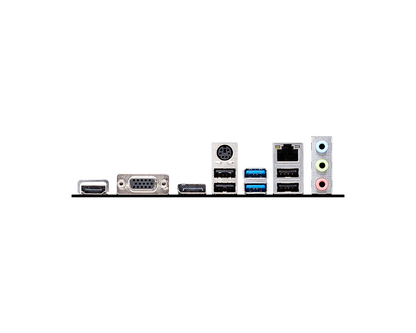

| Back Panel I/O Ports |
HDMI
VGA
DisplayPort
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
|
| Internal I/O Connector |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
|
| Form Factor |
Micro-ATX |
| Warranty |
3 Years |
